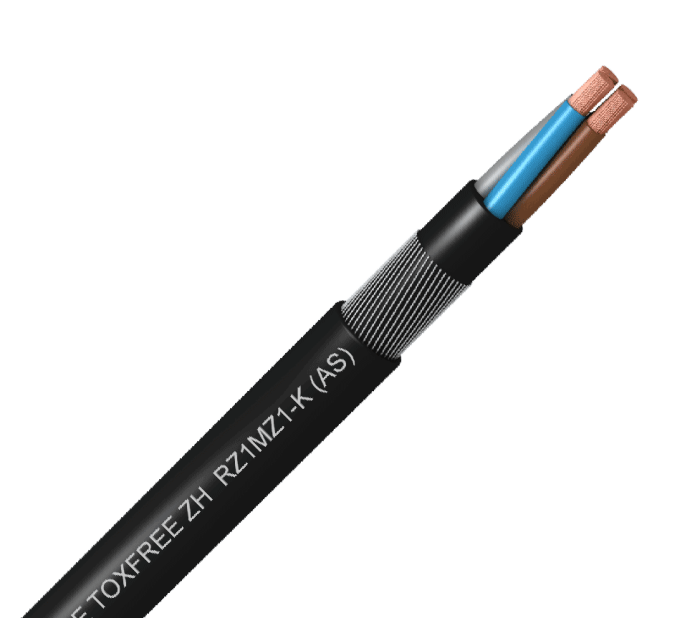

TOXFREE ZH RZ1MZ1-K (AS)
Description
TOXFREE ZH RZ1MZ1-K (AS) is a LSZH is a safety cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places, in hazardous areas with explosive gas atmospheres (ATEX), and installations in general where the cable is subject to risk of mechanical aggresion.
TOXFREE ZH RZ1MZ1-K (AS) cable performance
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1
Approvals
CE / RoHS
CPR Construction Products Regulations Cca s1b, d1, a1Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -50 °C according to GOST 31996.
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3 / IEC 60332-3 and EN 50399.
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: Cca s1a, d1, a1, according to EN 50575.Mechanical performance
Minimum bending radius: x10 cable diameter.
Impact resistance: AG4 High severity.
Rodent proof
Chemical performance
Chemical & Oil resistance: Acceptable.
UV Resistant: EN 50168.
Potentially explosion hazard locations. (ATEX)
Water performance
Water resistance: AD5 Jets.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Potentially explosion hazard locations. (ATEX)
TOXFREE ZH RZ1MZ1-K (AS) cable design
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Cross-linked polyethylene (XLPE) type DIX-3 according to HD 603 and type XLPE according to IEC 60502-1.
The standard identification of insulated conductors according to HD 308 is the following:
1 x natural
2 x Blue + Brown
3 G Blue + Brown + Green/yellow
3 x Brown+ Black+ Grey
4 G Brown + Black + Grey + Green/yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/yellow
6 or more Black numbered + Green/YellowArmour bedding
Low smoke halogen free (LSHF) polyolefin inner sheath.
Armour
Galvanized steel wire armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable.
Outer sheath
Low Smoke halogen free (LSHF) polyolefin, type ST8 according to IEC 60502-1. Black color, non-toxic and fire retardant.
LOW VOLTAGE 0,6/1kV
EN 60332-1 / EN 60332-3
Cca-s1b, d1, a1
Maximum conductor temperature: 90ºC.
Industral use / Potentially explosion hazard locations. (ATEX)
Technology
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE).
The standard identification of insulated conductors is the following:
1 x natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3 x Brown+ Black+ Grey
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Yellow/green
6 or more Black numbered + Green/Yellow
3. Armour bedding
Low smoke halogen free (LSHF) polyolefin inner sheath.
4. Armour
Galvanized steel wire armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable.
5. Outer sheath
Low Smoke halogen free (LSHF) polyolefin, type ST8 according to IEC 60502-1. Black color, non-toxic and fire retardant.
Cable Specifications
- Chemical & Oil resistance: Acceptable.
ELECTRICAL PERFORMANCE
- LOW VOLTAGE 0,6/1kV
MECHANICAL PERFORMANCE
- Impact resistance: AG4 High severity.
- Minimum bending radius: x10 cable diameter.
- Rodent proof
WATER RESISTANCE
- Water resistance: AD5 Jets.
CHEMICAL PERFORMANCE
- Potentially explosion hazard locations. (ATEX)
- UV Resistant: based on UNE 211605.
FIRE PERFORMANCE
- Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.
- Flame non-propagation based on EN 60332-1 and IEC 60332-1
- Low corrosive gases emission according to IEC 60754-2
- Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
- Low smoke halogen free according to IEC 60754-1
- Reaction to fire CPR: Cca-s1b, d1, a1 according to EN 50575.
THERMAL PERFORMANCE
- Maximum service temperature: 90ºC.
- Maximum short-circuit temperature: 250ºC (max. 5 s).
- Minimum service temperature: -50 °C according to GOST 31996.
- Minimum service temperature: 0ºC.
APPLICATIONS
- Industrial use.
- Potentially explosion hazard locations. (ATEX)
INSTALLATION CONDITIONS
- Buried
- In conduit.
- Open Air.
CONSTRUCTION PRODUCT REGULATION
- Cca-s1b, d1, a1
International norm
- IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
APPROVALS
- CE
- RoHS
BASED ON
- IEC 60502-1
National norm / European:
- EN 60332-1 / EN 60332-3
OTHERS
- Meter by meter marking.
