🔌 The Backbone of Industry: Understanding Industrial Wires & Cables, Featuring Copper

Industrial wires and cables are the unsung heroes of the modern world. They are the essential infrastructure that powers factories, illuminates cities, transmits data, and enables complex machinery to function. Without these robust and specialised conductors, industry, commerce, and everyday life would grind to a halt.

In this comprehensive guide, we’ll delve into the world of industrial wiring, exploring their importance, types, and crucial specifications. We’ll also shine a spotlight on the metal that forms the core of most high-performance cables: copper.

Why Industrial Cables Demand Superiority

Industrial environments are dramatically different from residential or commercial settings. They are often characterized by extreme conditions, including:

• High Temperatures: Proximity to machinery, furnaces, or high-current loads generates significant heat.
• Chemical Exposure: Oils, solvents, corrosive liquids, and industrial gases can degrade standard cable jackets.
• Mechanical Stress: Constant flexing, abrasion, crushing, or vibration from heavy equipment.
• Electromagnetic Interference (EMI): Large motors and power systems generate noise that can disrupt sensitive data and control signals.

To withstand these harsh realities, industrial cables must be designed with superior insulation, jacketing, and conductor materials. Their reliability is directly tied to operational safety, efficiency, and the prevention of costly downtime.

The Core Material: Why Copper Reigns Supreme

When discussing power and high-performance signal transmission in the industrial sector, the conversation inevitably centers on copper. This metal has secured its place as the gold standard for electrical conductors due to its unique properties

Key Advantages of Copper:

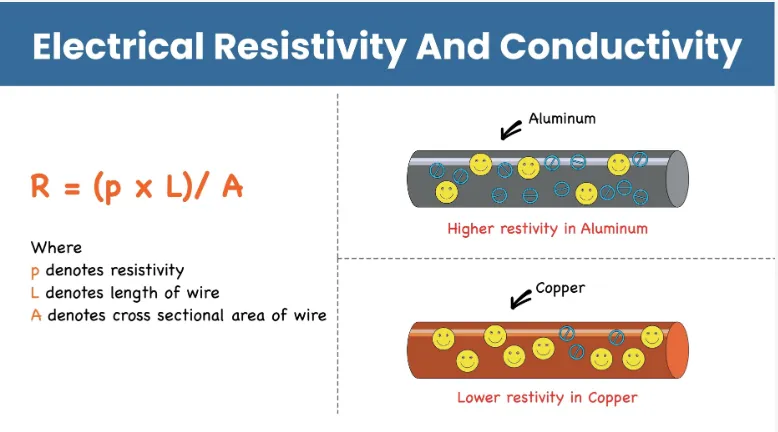

1. Exceptional Electrical Conductivity: Copper boasts the highest electrical conductivity rating among all non-precious metals. This means it can carry more current per unit of area with less energy loss (lower resistance) compared to alternatives like aluminium.
2. Superior Tensile Strength & Durability: Copper is inherently strong and ductile. It can be easily drawn into fine wires and strands without breaking, and it maintains its mechanical integrity under stress. This resistance to stretching and breaking is vital for installation and long-term reliability.
3. Excellent Corrosion Resistance: Pure copper forms a protective layer of patina when exposed to air, which helps prevent further degradation, especially in non-marine industrial settings.
4. Thermal Stability: Copper has a high melting point and can reliably operate at high temperatures without compromising its structure or performance.
5. Easy Solderability: Copper’s compatibility with solder makes creating reliable, low-resistance connections (terminations) straightforward—a critical factor for industrial maintenance.

While aluminum is sometimes used for very long-distance, high-voltage transmission lines due to its lighter weight, copper dominates the in-plant, industrial application space where maximizing current capacity, minimizing resistance, and ensuring long-term connection reliability are paramount.

A Taxonomy of Industrial Wires & Cables

Industrial wiring is a highly specialized field, with different cable types engineered for specific tasks. Here are some of the most common categories:

1. Power & Distribution Cables

These cables carry the high current necessary to run heavy machinery, motors, and facility-wide electrical systems.

• THHN/THWN: Common building wires, though often encased in rigid conduit in industrial settings. They are rated for higher temperatures and wet locations.
• Medium Voltage (MV) Cables: Used for primary power distribution within large facilities, typically operating between $2.4 \text{ kV}$ and $35 \text{ kV}$. They feature thick insulation layers and often use XLPE (Cross-Linked Polyethylene) jacketing for durability.

2. Control & Instrumentation Cables

These cables transmit low-voltage signals for monitoring, control, and automation. They require features that minimize electrical noise.

• Shielded Cables: Essential for carrying sensitive signals. They include an inner metallic layer (foil or braid) that acts as a Faraday cage to block external EMI and RFI (Radio Frequency Interference).
• Twisted Pair Cables: Within the cable, individual conductors are twisted together. This technique cancels out electromagnetic noise that might otherwise be induced in the wires, a crucial feature in environments with high EMI (like near variable frequency drives).

3. Specialty & Flex Cables

Designed for highly dynamic or unique operating conditions.

• Continuous Flex Cables: Used in cable carriers (drag chains) on robotic arms, automated assembly lines, and CNC machinery. They are built with highly flexible stranding and robust, non-tacky jacketing materials to withstand millions of bending cycles.
• Welding Cables: Extremely flexible and robust cables designed to handle the high-current, intermittent loads from arc welding equipment. They feature thick rubber or neoprene jacketing for superior abrasion and heat resistance.
• Tray Cables (TC): Cables specifically rated to be installed in cable trays without the need for conduit, simplifying installation and maintenance in industrial settings.

The Role of Insulation and Jacketing

While copper is the conductor, the performance and longevity of the cable are equally dependent on the insulation (material surrounding the conductor) and the jacketing (the outermost protective layer). These materials determine the cable’s environmental resistance.

Selecting the correct jacket material is critical. For instance, a cable used near cutting fluid must have a jacket rated for oil resistance, while one used outdoors requires a jacket with UV and moisture protection.

Selecting the Right Cable: Key Considerations

Choosing the appropriate industrial wire or cable requires a careful analysis of the application’s electrical and environmental requirements.

• Voltage and Current Rating (Ampacity): The cable’s AWG (American Wire Gauge) or mm² size must be sufficient to carry the required current without overheating. This calculation relies on factors like maximum load, ambient temperature, and installation method (e.g., in a tray vs. in the air).
• Temperature Rating: The cable must be rated for the expected operating temperature, considering both the heat generated by the current and the external heat of the environment.

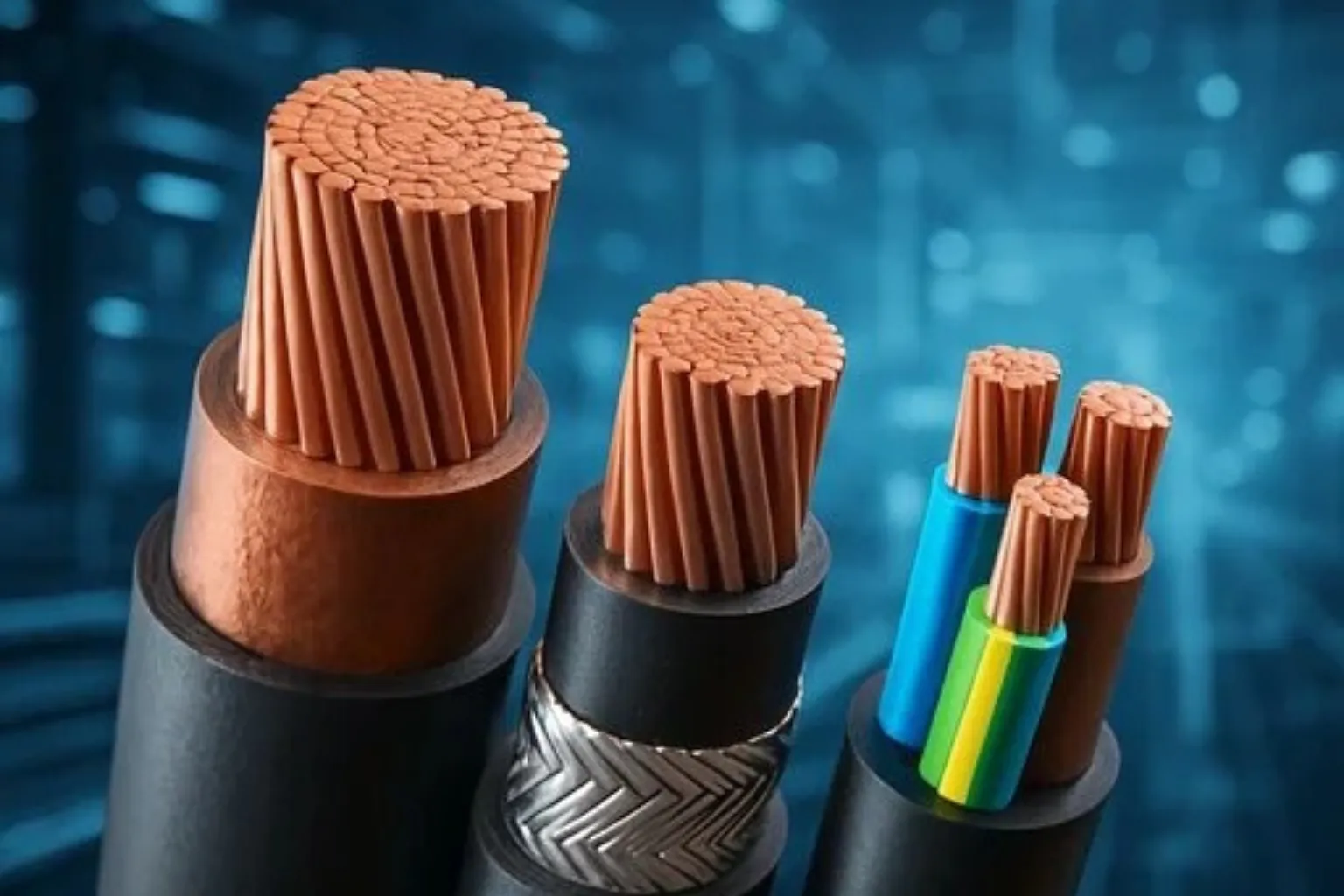

• Flexibility and Stranding: Solid conductors are stiff and used in fixed installations. Stranded copper conductors (multiple fine wires twisted together) are used where flexibility is required, offering higher fatigue resistance.
• Compliance and Standards: Cables must meet relevant safety and performance standards like UL (Underwriters Laboratories), CSA (Canadian Standards Association), and NFPA 70 (National Electrical Code) to ensure safe installation and operation.

The Future is Wired

As industries move towards greater automation, robotics, and the Industrial Internet of Things (IIoT), the demand for high-reliability, high-speed industrial cabling will only intensify. Future innovations will focus on materials that offer even greater resistance to extreme temperatures, smaller footprints for dense installations, and advanced shielding to handle the confluence of power and data lines.

The robust, highly conductive nature of copper ensures its continued role as the fundamental material powering the complex, automated factories of tomorrow. Investing in high-quality, purpose-built industrial cables is not just an electrical necessity—it’s an investment in the uninterrupted productivity and safety of the entire operation.
