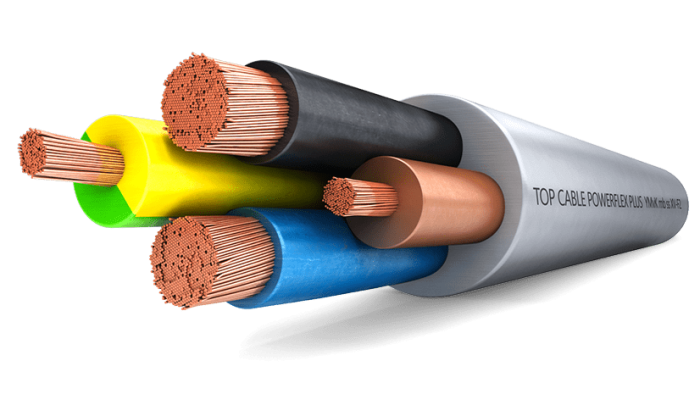

POWERFLEX PLUS YMvKf
Description
POWERFLEX Plus YMvKf cable is suitable for all types of industrial low voltage connections, urban grids, building installations, etc. This cable is fire retardant and is recommended for use in public places and hazardous industries. Its flexibility makes installation substantially easier, making it highly suitable for difficult layouts. This cable can also be used in buried installations or in tubes or outdoors without requiring additional protection. This cable withstands damp conditions and even total submersion in water (AD7).
LOW VOLTAGE 0,6/1kV
Maximum conductor temperature: 90ºC.
Industrial use.
IEC 60502-1
Reaction to fire CPR: Cca-s2,d2,a3 according to 50575.
EN 60332-1 / EN 60332-3
Cca-s2,d2,a3
Technology
1. Conductor
Electrolytic annealed copper conductor, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE) according to IEC 60502-1.
The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4 G Brown + Black + Grey + Yellow/green
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Yellow/green
3. Outer sheath
Low Smoke Halogen Free (LSHF) polyolefin. Black colour.
Cable Specifications
ENVIRONMENTAL PERFORMANCE
-
Chemical
Oil resistance: Acceptable.
ELECTRICAL PERFORMANCE
- LOW VOLTAGE 0,6/1kV
MECHANICAL PERFORMANCE
- Impact resistance: AG2 Medium severity.
- Minimum bending radius: x5 cable diameter.
WATER RESISTANCE
- Water resistance: AD8 Submersion.
CHEMICAL PERFORMANCE
- UV Resistant: based on UNE 211605.
FIRE PERFORMANCE
- Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24.
- Flame non-propagation based on EN 60332-1 and IEC 60332-1
- Reaction to fire CPR: Cca-s2,d2,a3 according to 50575.
- Reduced halogen emission. Chlorine <15%.
THERMAL PERFORMANCE
- Maximum service temperature: 90ºC.
- Maximum short-circuit temperature: 250ºC (max. 5 s).
- Minimum service temperature: -40ºC (fixed and protected installations)
APPROVALS
- CE
- BUREAU VERITAS
- KEMA KEUR
- CEBEC
- AENOR
- RoHS
INSTALLATION CONDITIONS
- Buried
- In conduit.
- Open Air.
National norm / European:
- UNE-EN 60332-1
CONSTRUCTION PRODUCT REGULATION
- Cca-s2,d2,a3
BASED ON
- IEC 60502-1
International norm
- EN 60332-1 / EN 60332-3
OTHERS
- Meter by meter marking.
