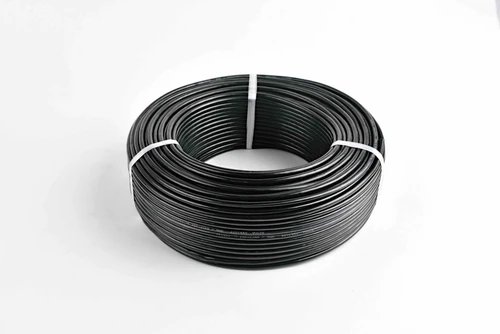

4 mm² Single Core Flexible DC Solar Premium Copper Cable
₨ 13,000
Description
Life Cables 4 mm² Flexible DC Solar Premium Copper Cable
The Life Cables 4 mm² single core flexible DC solar cable is built for Pakistan’s rooftop and ground-mount solar installations, constructed with a premium 99.9% oxygen-free copper (OFC) conductor for reliable outdoor performance and low conductor resistance across long PV wiring runs.
Rated at 250/450 V and 32 Amperes, and constructed to BSS-6004 equivalent, BSS-2004 Pakistan standards, it is supplied on 90-metre reels in Red, Black, Yellow, and Blue for circuit identification.
⚠ Electrical Safety Notice
- All electrical installations must be carried out by a licensed / qualified electrician in accordance with BSS-2004 Pakistan and IEC 60364 wiring regulations.
- Verify the correct cable size for your circuit load. The 32 A rating is for a single cable in open air; derating is required when cables are bunched, enclosed in conduit, or installed at higher ambient temperatures.
- Use proper cable glands, connectors (e.g. MC4 for PV strings), and terminations to prevent insulation damage and maintain outdoor durability.
- Colour coding must follow your system installer’s convention and be documented, per IEC 60446 practice.
- Life Cables accepts no liability for installations not completed by a qualified professional in line with applicable codes.
Technical Specifications
| Parameter | Value |
|---|---|
| Cross-Sectional Area | 4 mm² |
| Conductor Designation | 55/.012″ (as published) |
| Number of Strands | 55 |
| Strand Diameter | 0.012 inch |
| Conductor Type | Premium 99.9% Oxygen-Free Copper (OFC) |
| Insulation Type | Poly Vinyl Chloride (PVC) |
| Standard | BSS-6004 Equivalent (160/.0076″), BSS-2004 in Pakistan |
| Voltage Rating | 250/450 V |
| Ampere Rating | 32 A (open air) |
| DC Resistance | 4.61 Ω/km at 20°C (as published) |
| Temperature Rating | -20°C to +70°C |
| Reel Length | 90 metres |
| Reel Weight | 5.8 kg |
| Available Colours | Red, Black, Yellow, Blue |
Key Applications
- Solar PV panel wiring — interconnecting modules within a rooftop or ground-mount array
- Charge controller connections — PV array to MPPT/PWM charge controller
- Battery bank interconnects — flexible routing between battery cells/banks and inverter or controller terminals
- Inverter DC input wiring — controller/battery to inverter runs
- Off-grid and hybrid solar systems — residential and small commercial DC distribution
- Caravan, RV, and marine solar setups — flexible DC wiring for mobile installations
✅ Compliance & Certifications
- BSS-6004 — British Standard for PVC-insulated cables (electric power, lighting & internal wiring)
- BSS-2004 Pakistan — Pakistan Standard equivalent, adopted by PSQCA
- IEC 60227 — International standard for PVC-insulated cables up to 450/750 V
- IEC 60446 — Colour coding of conductors
- PSQCA Approved — Test Report Ref No. [QCC/4(362)/18-19] | Verify at psqca.com.pk
Why Choose Life Cables 4 mm² Solar
- 99.9% Oxygen-Free Copper — lower resistance, better conductivity, reduced heat generation on DC runs
- Flexible construction — copes with tight bend radii around junction boxes and cable trays
- Consistent PVC insulation — rated -20°C to +70°C for Pakistan’s outdoor temperature extremes
- Manufactured in Pakistan — produced with PSQCA-aligned manufacturing standards
- 90-metre reels — minimises joins across long array-to-controller or controller-to-battery runs
4 mm² Single Core Flexible DC Solar Cable Guide: Best Article for Specs & Uses
Frequently Asked Questions
What is 4 mm² DC solar cable used for?
It’s used to wire photovoltaic systems — connecting solar panels in a string, linking panels to a charge controller, and running DC power between controllers, batteries, and inverters — where the cable is exposed to outdoor heat, UV, and weather.
What is the current rating of Life Cables’ 4 mm² solar cable?
32 A as published. Actual current-carrying capacity depends on installation method (open air, conduit, tray), ambient temperature, and bundling — consult a qualified solar installer for your specific string design.
What is the voltage rating?
250/450 V, suitable for standard residential and commercial DC solar circuits. Confirm compatibility with your system’s actual string and battery bank voltage before installation.
Is this cable suitable for outdoor and direct sun exposure?
Its PVC insulation is rated -20°C to +70°C, which covers outdoor solar wiring. [CONFIRM — insert UV/ozone-resistance rating if this insulation compound differs from standard PVC, to match durability claims used on other solar-cable pages].
What is the DC resistance of this cable?
4.61 Ω/km at 20°C as published. Lower resistance means less voltage drop and less heat generation across long array-to-controller or controller-to-battery runs.
Can I get this cable with a PSQCA test report reference?
[QCC/4(362)/18-19]. Contact Life Cables directly via WhatsApp for the latest available compliance documentation.
What colours are available and how many metres per reel?
Red, Black, Yellow, and Blue. Each reel is 90 metres and weighs approximately 5.8 kg. For bulk orders or custom cut lengths, call 0300-0757533.
