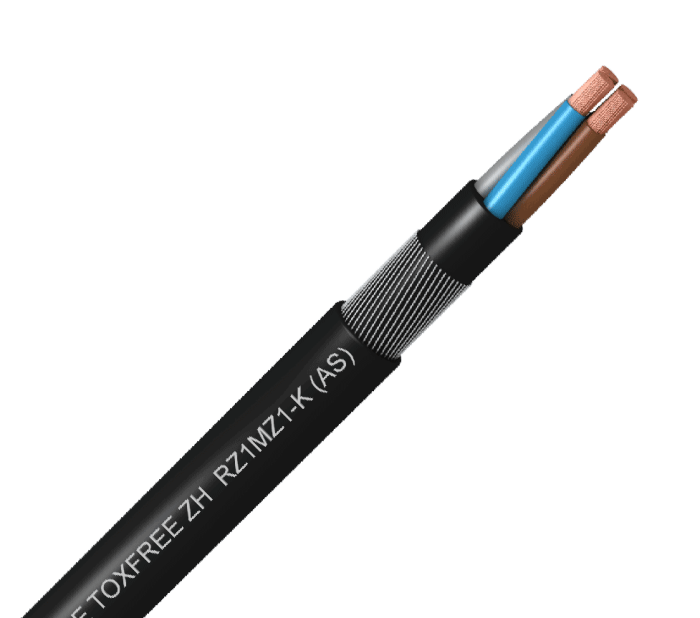

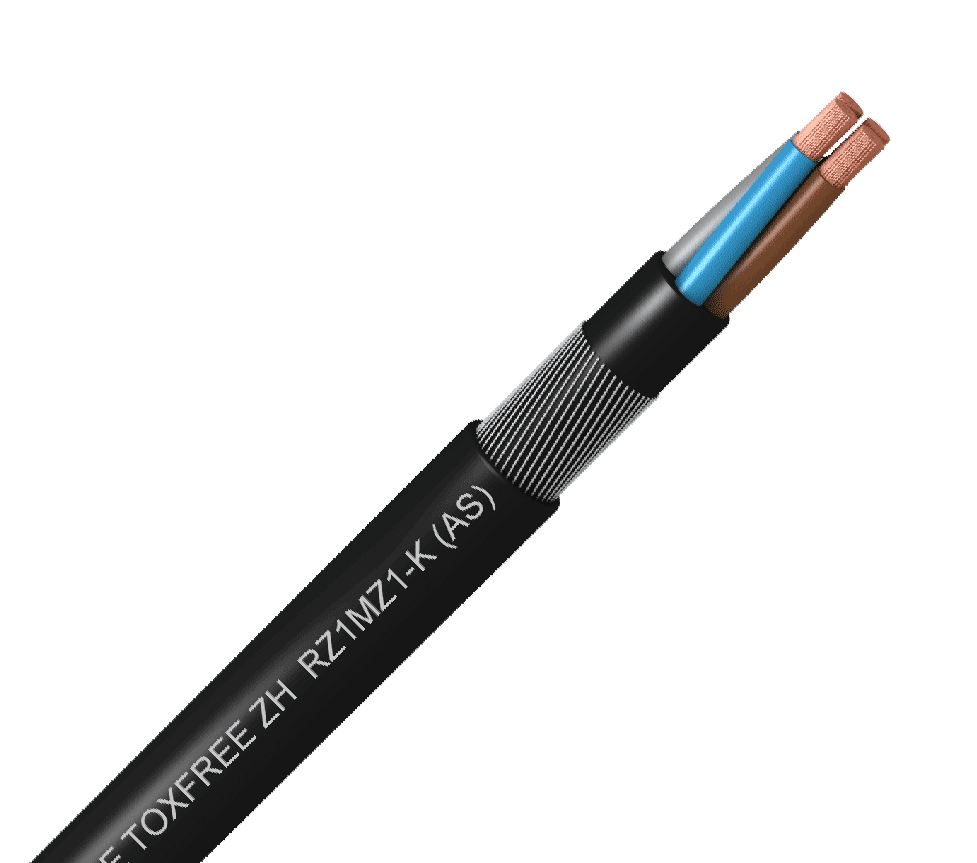

TOXFREE ZH RZ1MZ1-K (AS)

An armored LSZH safety cable is TOXFREE ZH RZ1FZ1-K AS. It does not release harmful or corrosive gasses in the event of a fire, safeguarding the public's health and preventing potential harm to electronic devices. Its use is therefore strongly advised in public areas, in rodent-infested installations, and in installations where there is a chance of mechanical aggression against the cable.

Performance of the TOXFREE ZH RZ1FZ1-K AS cable
Electrical functionality

MINIMUM VOLTAGE 0,6/1kV

Typical

UNE 21123-4 and IEC 60502-1

Acceptances

CE

RoHS

Regulation of CPR Construction Products

Cca-s1b, d1, a1
Thermal efficiency

90ºC is the maximum conductor temperature.

250ºC is the maximum short-circuit temperature (maximum 5 s).

-40ºC is the minimum service temperature for shielded and permanent installations.

Performance of fire

non-propagation of flames according to IEC 60332-1 and EN 60332-1.

non-propagation of fire according to IEC 60332-3 and EN 60332-3.

low smoke zero halogen, or LSZH, in accordance with EN 60754-1 and IEC 60754-1.

According to EN 61034 and IEC 61034, low smoke emissions: Transmittance of light > 60%

low emissions of corrosive gases in accordance with IEC 60754-2 and EN 60754-2.

Performance of mechanical systems

A cable diameter of x10 is the minimum bending radius.

AG4 High severity is the impact resistance rating.

Proof against rodents

Performance of chemicals

Resistance to chemicals and oil: Acceptable.

The UV resistance is EN 50618.

Performance of water

AD5 Jets are water resistant.

Other

marker from meter to meter.

Uses

industrial use.

Design of TOXFREE ZH RZ1FZ1-K AS wire conductor

Class 5 (flexible) electrolytically annealed copper, according to EN 60228 and IEC 60228.

Insulation

XLPE, or cross-linked polyethylene.

In accordance with HD 308, insulated conductors are typically identified as follows:

One Natural

Two x Brown + Blue

3 G Green/yellow + Brown + Blue

Three x Brown, Black, and Grey

4 G Green/yellow + Black + Grey + Brown

Four times: Brown, Black, Grey, and Blue

Five grams of brown, black, grey, blue, and green or yellow

Six or more green/yellow separation sheaths with black numbers

Polyolefin inner sheath with low smoke zero halogen (LSZH) properties.

Armor

Double tape armour made of steel or aluminum. Single-core cables use aluminum armor to prevent parasite currents that could cause the cable to overheat. The multicore cables are made of steel tape.

External sheath

IEC 60502-1 classifies Low Smoke Zero Halogen (LSZH) polyolefins as type ST8, while UNE 21123-4 classifies them as type DMZ-E. Green, fire-retardant, and non-toxic.
