TOXFREE ZH OUTDOOR H07Z1-K (AS) Cu/Sn

Overview

Description

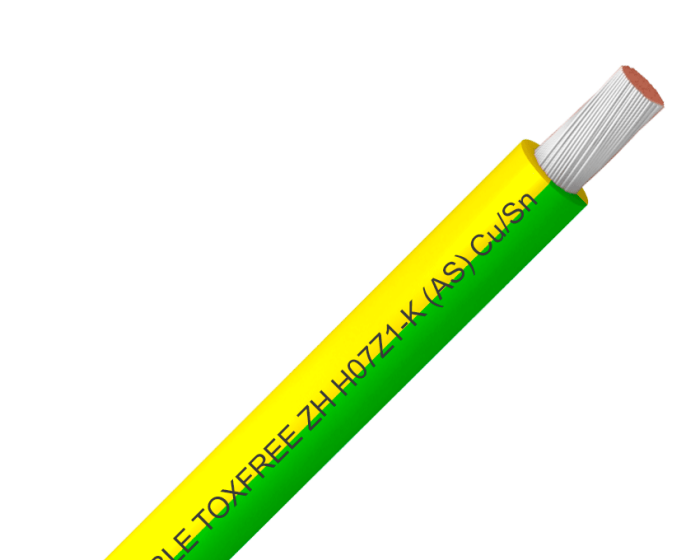

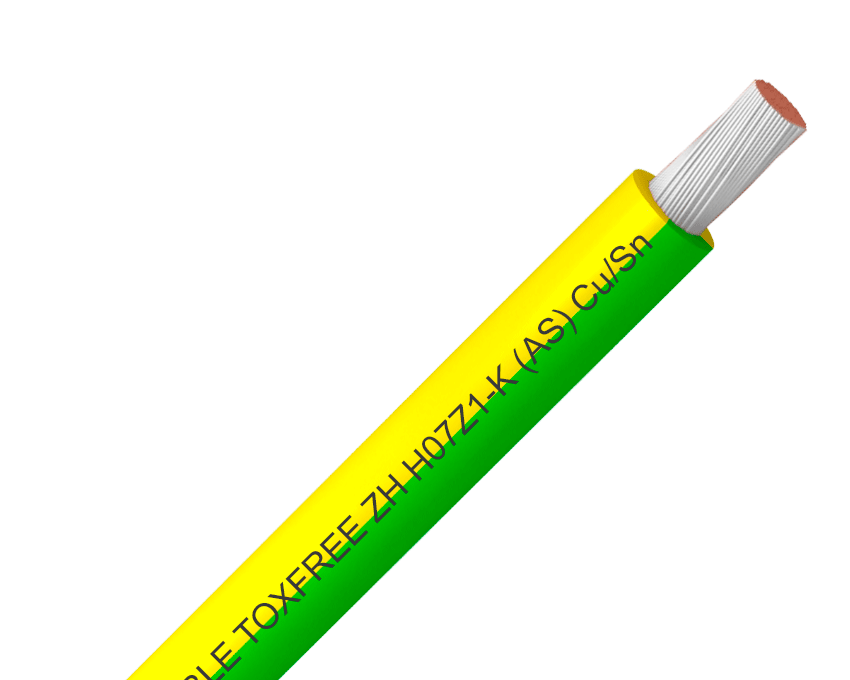

Solar grounding cable, with tinned copper conductor

Toxfree® ZH Outdoor H07Z1-K (AS) Cu/Sn is a cable specially designed for ground connections in outdoor installations. The tinned copper conductor and special outer sheath compounds make this cable highly resistant to corrosion and ultraviolet (UV) degradation and prevent galvanic pair when connecting metals of different normal potential. It is a halogen-free cable with the highest CPR classification (B2ca-s1a,d1,a1) and UV protection according to solar standard EN 50618.
TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable performance
Electrical performance

LOW VOLTAGE 450/750 V

Standard

EN 50525-3-31 / UNE 211002

Approvals

AENOR / HAR / CE / RoHS / BUREAU VERITAS

CPR Construction Products Regulation

B2ca s1a, d1, a1

Thermal performance

Maximum conductor temperature: 70ºC

Maximum short-circuit temperature: 160ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24 and EN 50399.

LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.

Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%

Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.

Reaction to fire CPR: B2ca s1a, d1, a1 , according to EN 50575.
Mechanical performance

Minimum bending radius: x5 cable diameter.

Chemical performance

Chemical & Oil resistance: Excellent.

Water performance

Water resistance: AD3 Sprays.

Other

Meter by meter marking. (from 10mm2 onwards)

Installation conditions

In conduit.

Packaging

High-resistant boxes and drums.

TOXFREE ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable design
Conductor

Electrolytic annealed tinned copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

UV resistant polyolefin, type TI7 according to EN 50363-7.

The standard identification of insulated conductors is the following:

Yellow/Green RAL 6018 / 1021

Other colours available on request

LOW VOLTAGE 450/750 V

B2ca -s1a, d1, a1

Water resistance: AD3 Sprays

AENOR, CE, HAR, RoHS, BUREAU VERITAS

Minimum bending radius: x5 cable diameter

Technology

1. Conductor
Electrolytic annealed tinned copper, class 5 (flexible), according to EN 60228 and IEC 60228.
2. Insulation
UV resistant polyolefin, type TI7 according to EN 50363-7.
The standard identification of insulated conductors is the following:
Yellow/green RAL 6018 / 1021
Other colours available on request

Cable Specifications

CHEMICAL PERFORMANCE

FIRE PERFORMANCE

Fire non-propagation according to EN 60332-3-24 and IEC 60332-3-24.
Flame non-propagation based on EN 60332-1 and IEC 60332-1
Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.
LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
