0.50mm² or (23/.0076") Single & 2 Cores
Price range: ₨2,700.00 through ₨5,700.00
1.5 mm² or (70/0076") Single & 2 Cores
Price range: ₨7,300.00 through ₨15,000.00
1 mm² or (40/0076″) Single Core & 2 Cores
Price range: ₨4,800.00 through ₨9,500.00
Description
Description

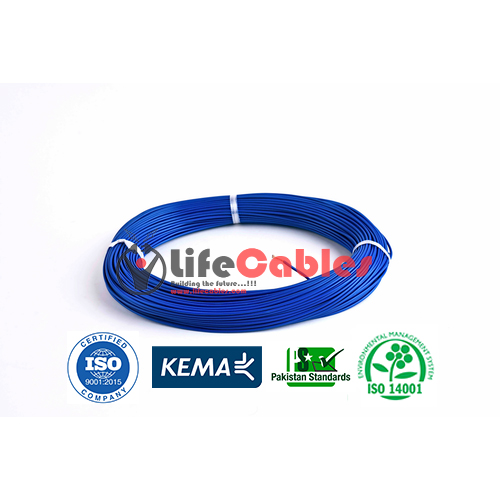

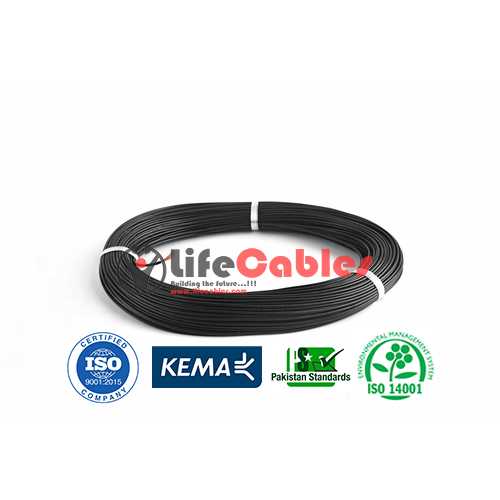

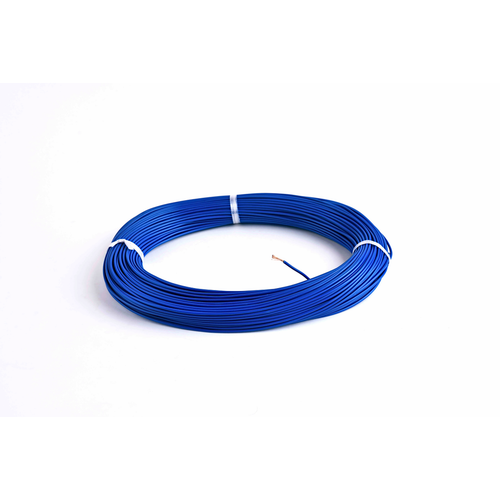

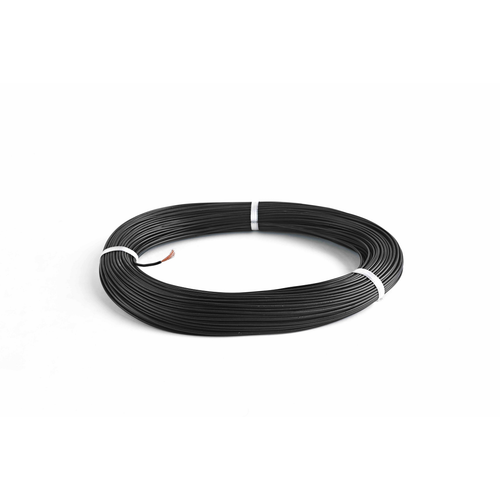

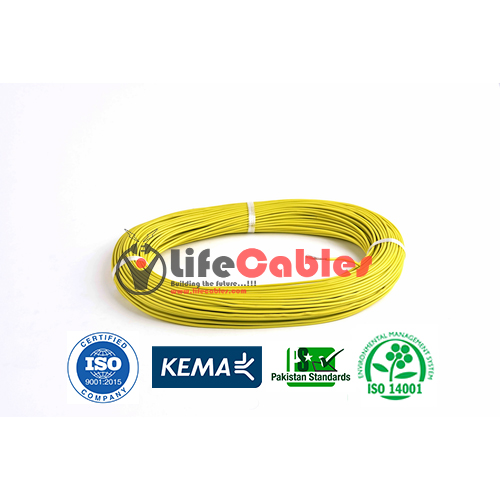

Most Commonly used in panel wiring.
| Weight | 1.8 kg |
| Select Color | RED, BLACK, YELLOW, BLUE |
| Length | 90 meters |
| No. of Strands | 40 |
| Strand Diameter | .007 Inch |
| Conductor Type | Premium 99.9% Oxygen Free Copper Conductor |
| Insulation Type | Poly Vinyl Chloride (PVC) |
| Standard | BSS-6004 Equivalent (23/.0076 )BSS-2004 in Pakistan |
| Temperature Rating | -20C˚ to 70C˚ |
| Dc Resistance | 8.06 ohm/km |
| Colors Available | RED, BLACK, YELLOW,BLUE |
| Voltage Rating | 250/450V |
| Ampere Rating | 11 Amps |
Additional information
Additional information
| Colour |
Black ,Blue ,Red ,Yellow |
|---|---|
| Cores |
Single Core ,Double Cores |
